XM or GPS Antenna Receiver Installation.

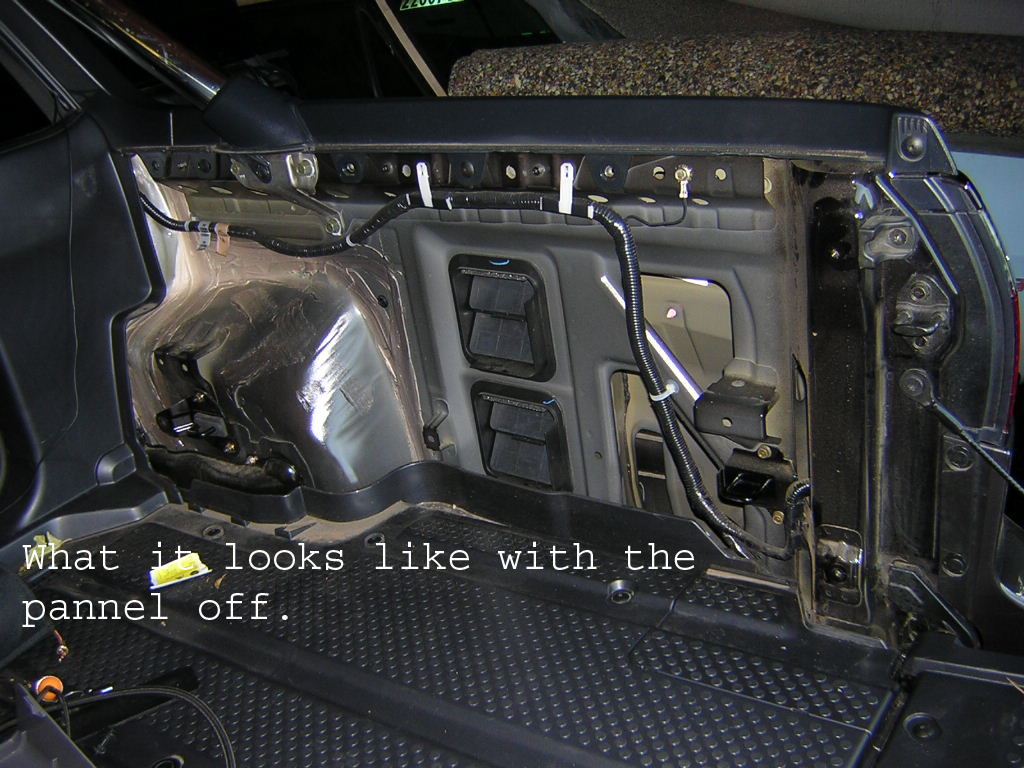

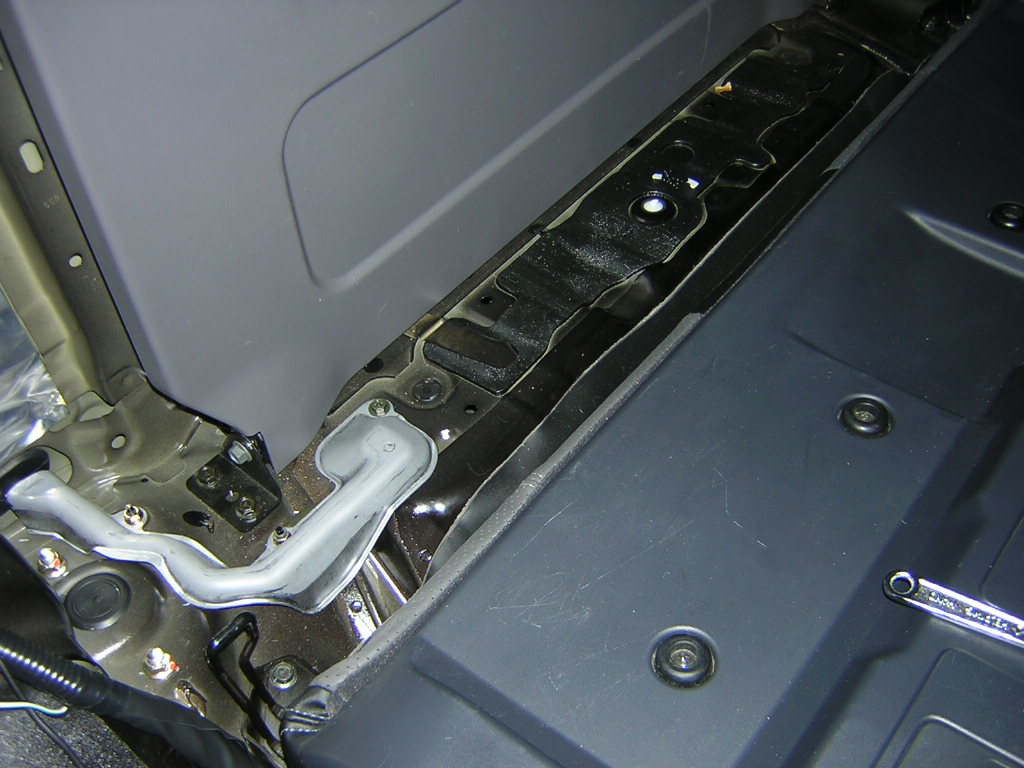

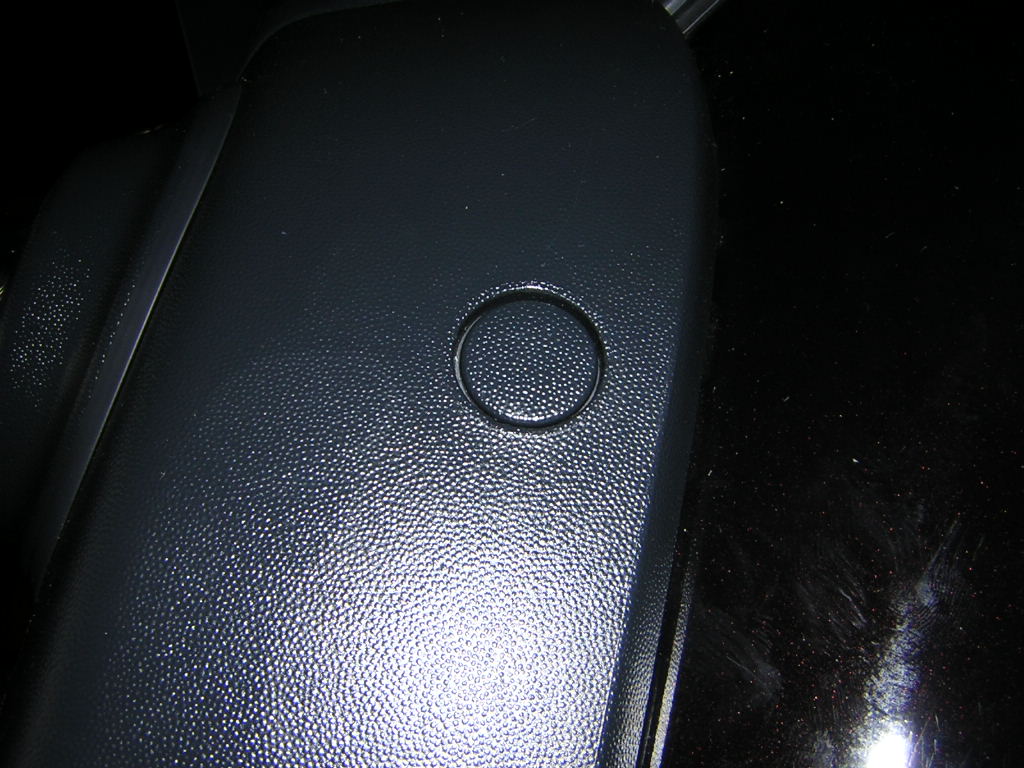

First take off the Bed Pannel

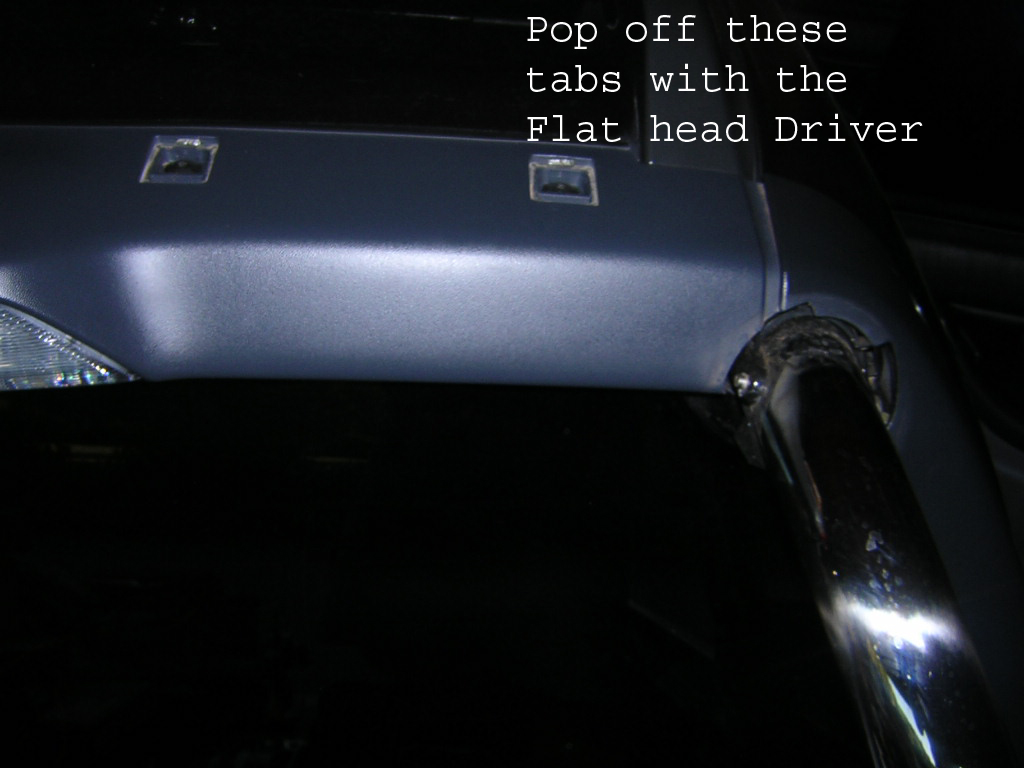

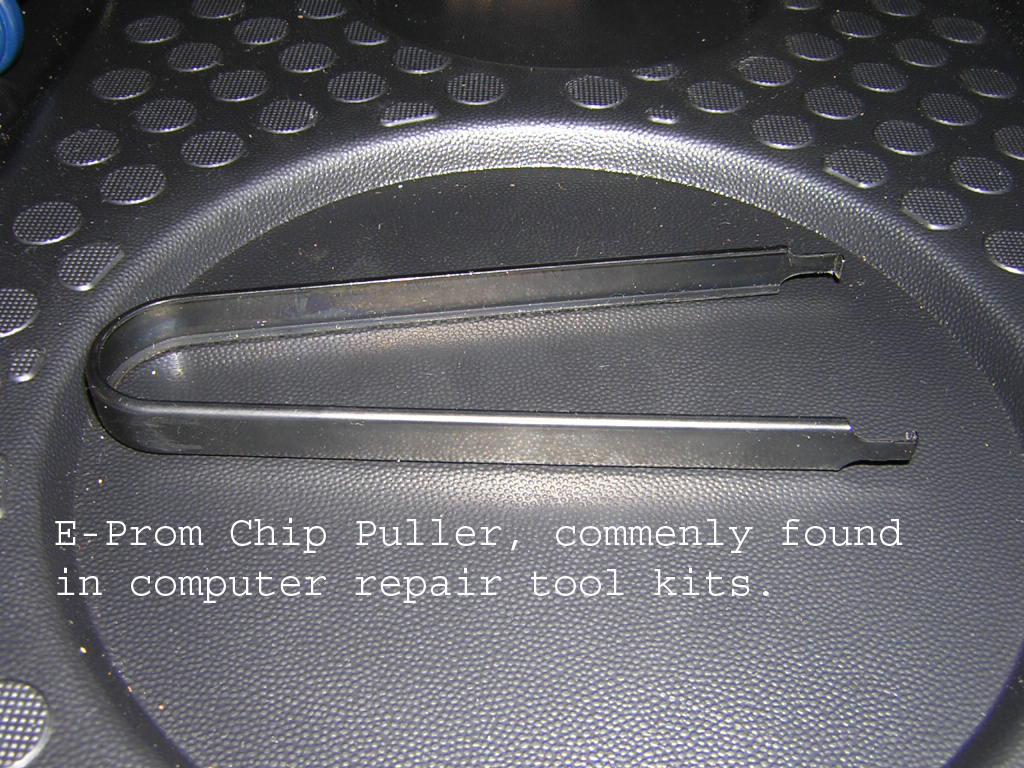

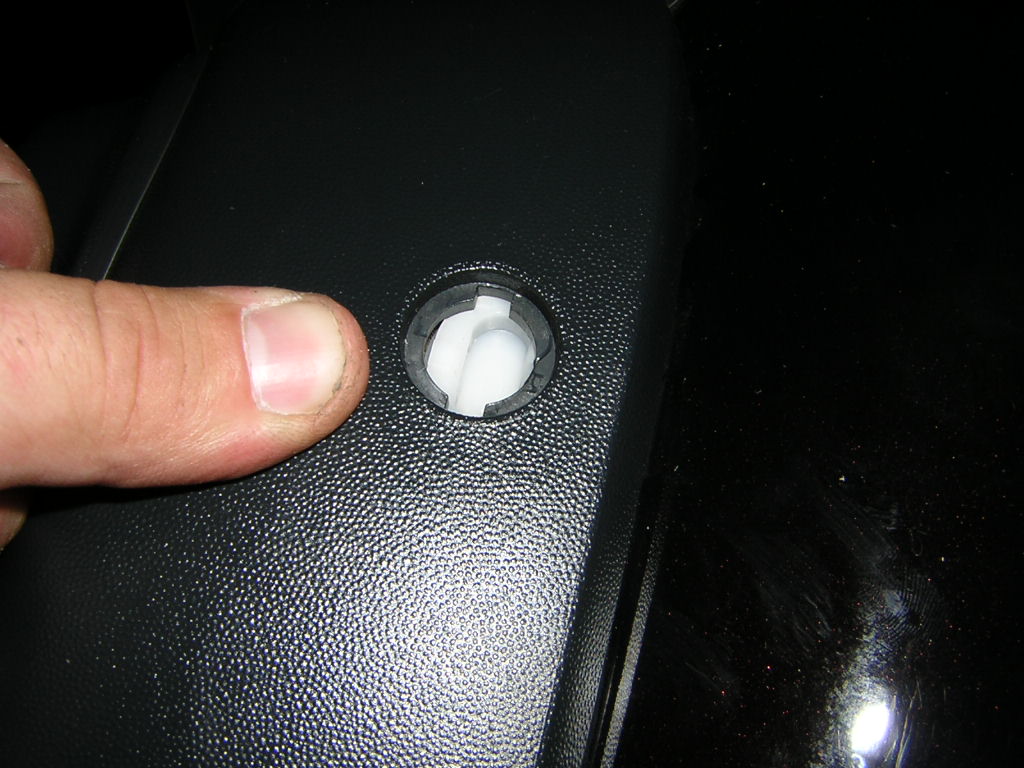

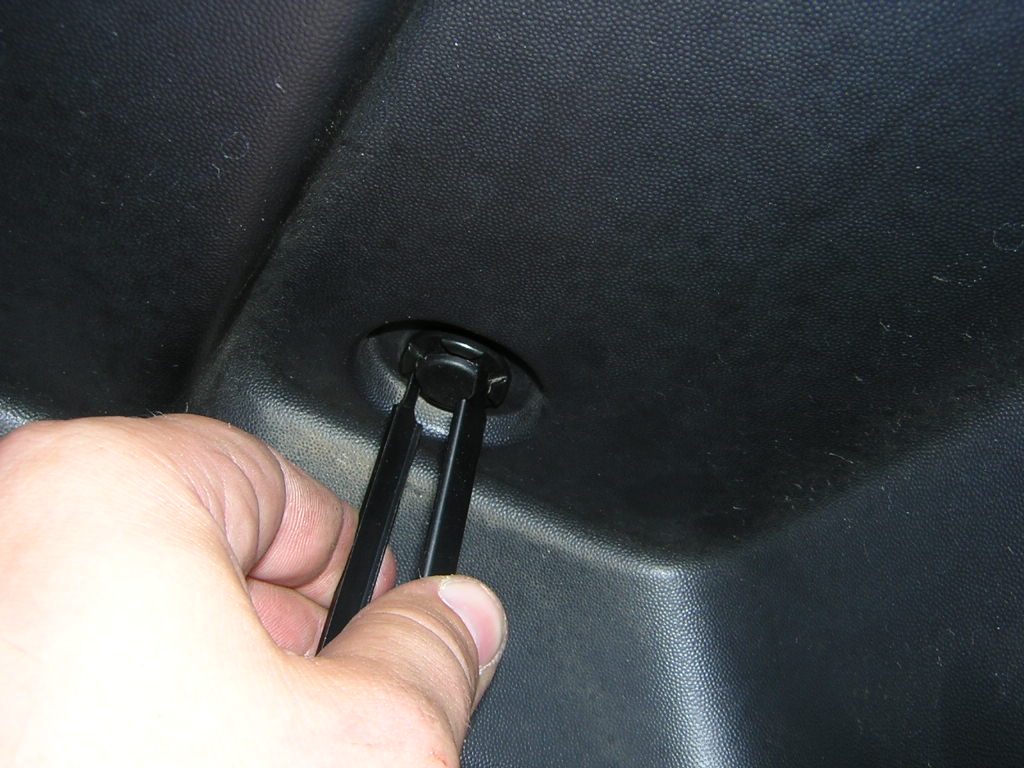

        To take off the tabs in the panel, I recommend that you use a chip puller to pull them off:

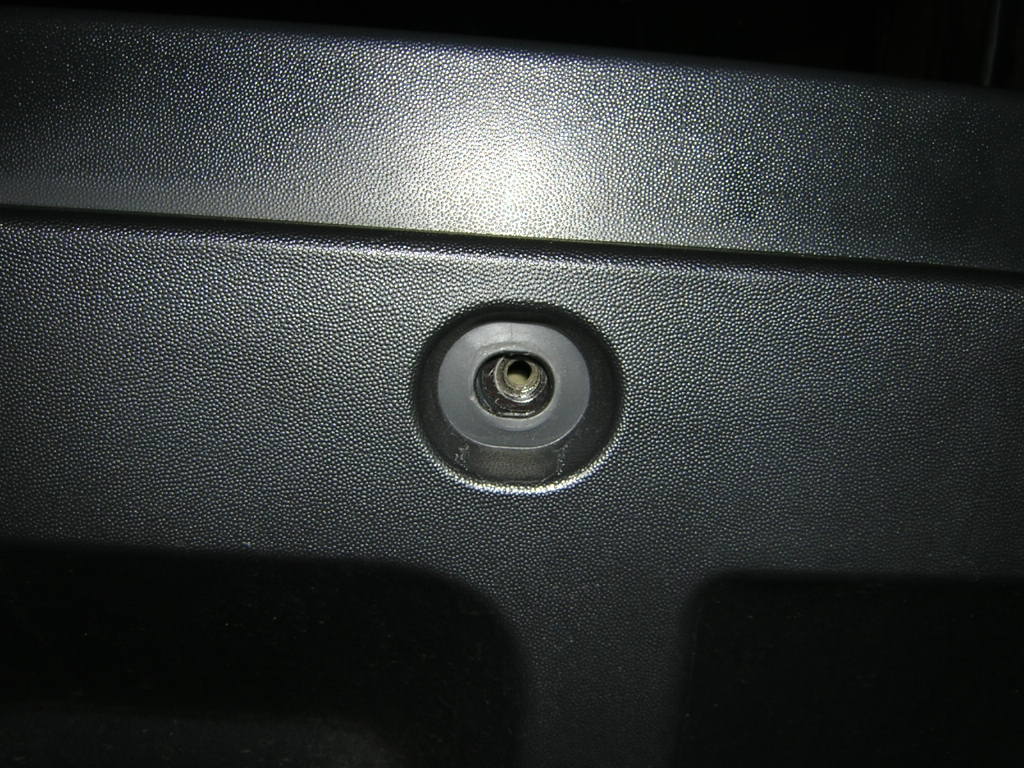

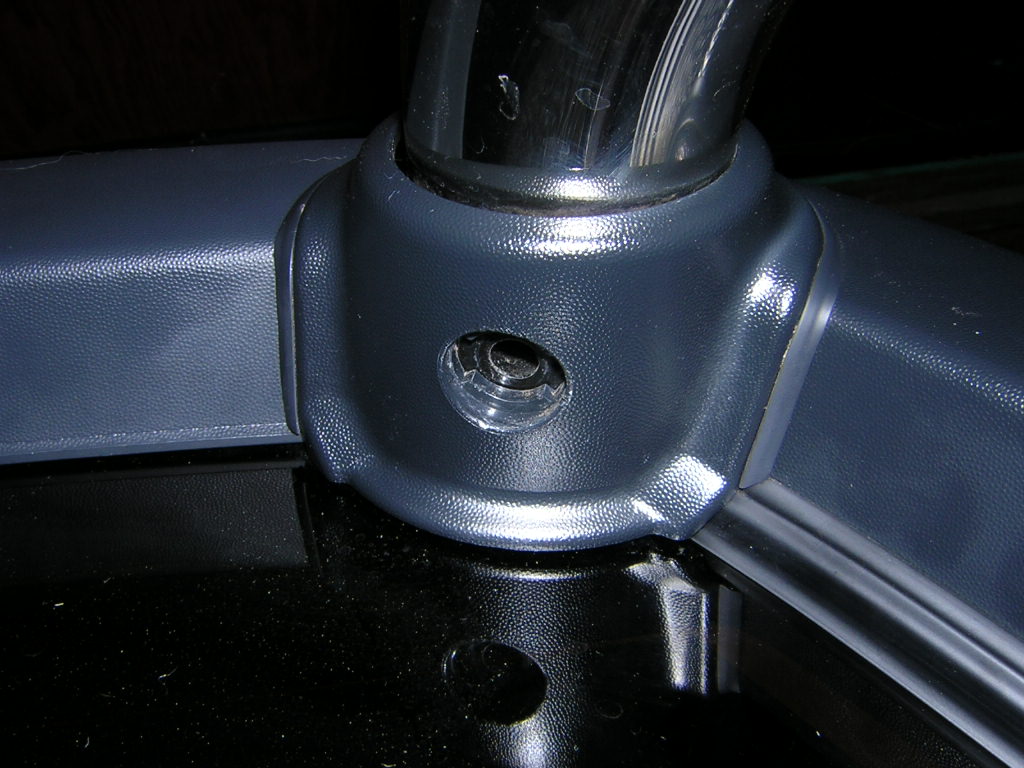

        Remove the T30 Screws from the pannel:

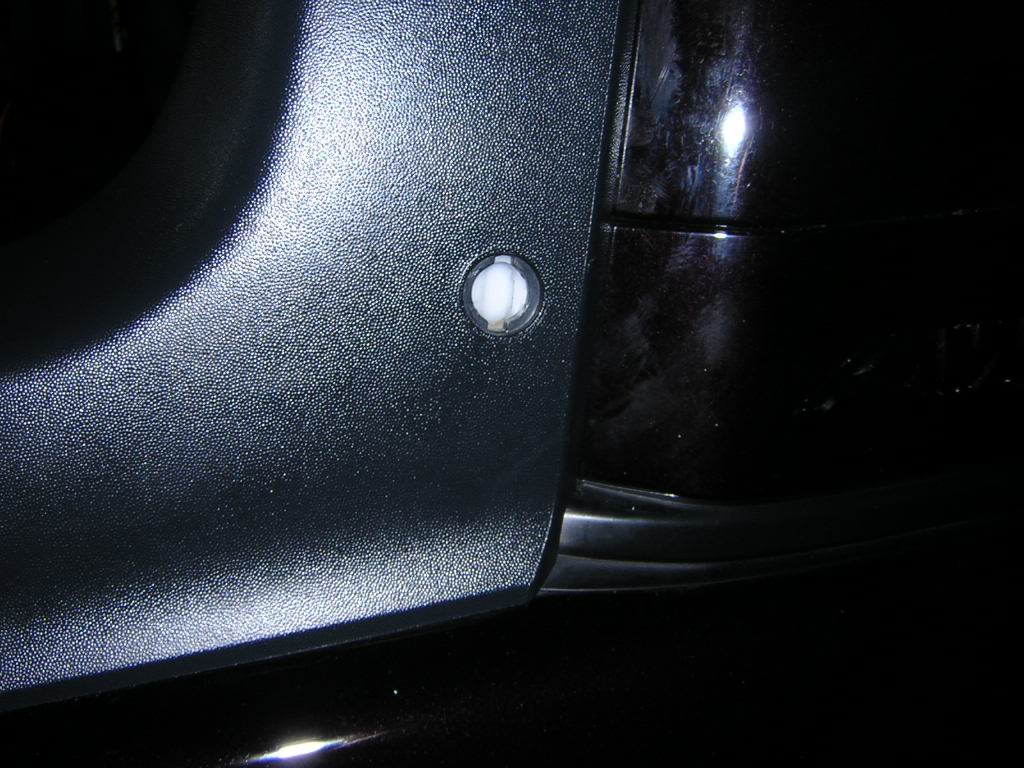

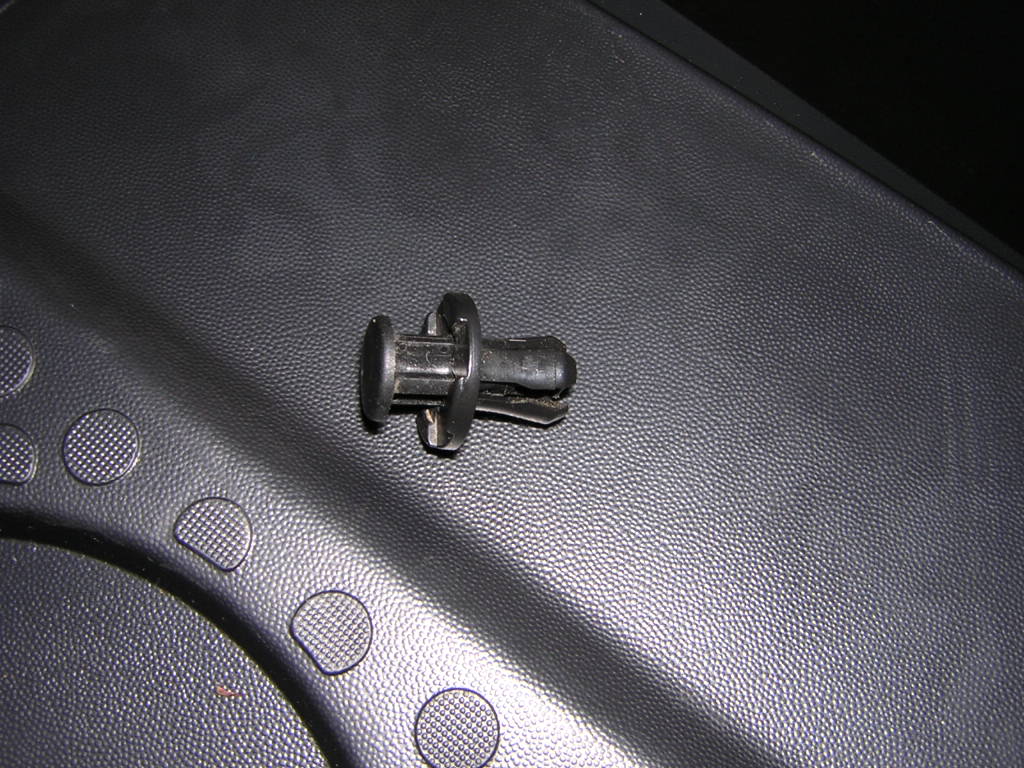

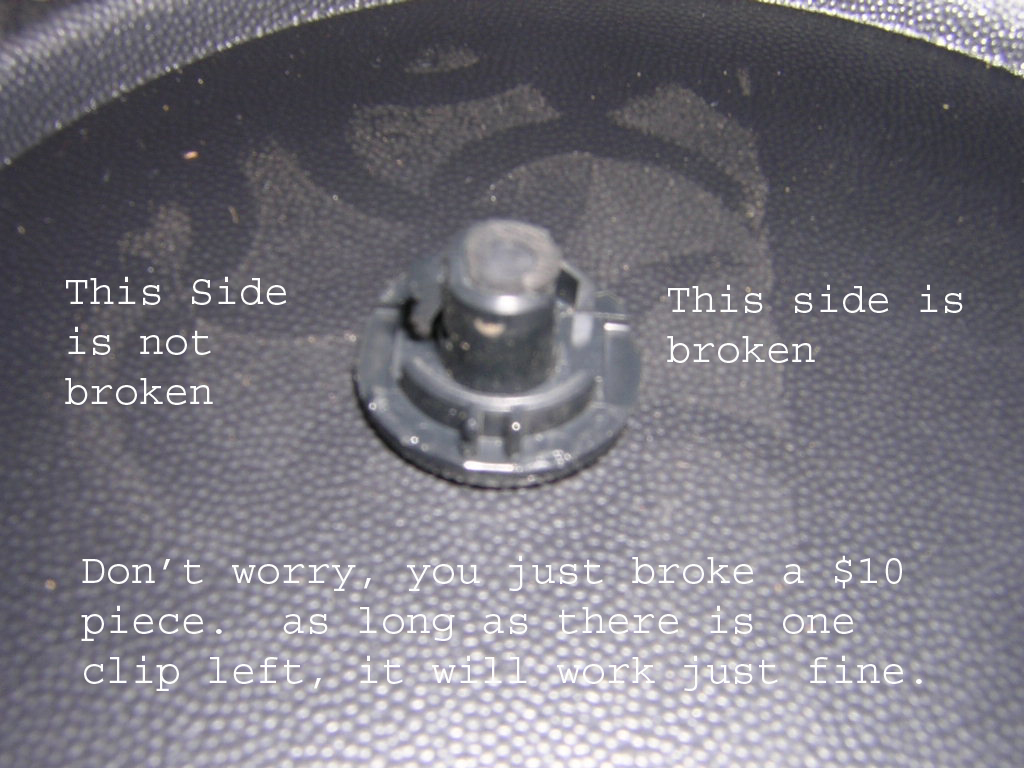

        Remove the Clips from the panels around role bars (don't worry too much, you will probably break the clips a little. They are designed for 1 time use only.  To replace them, it is ~ $10 each.  When I removed mine, I broke only one side of the clip and they work just fine with just the other half in it.

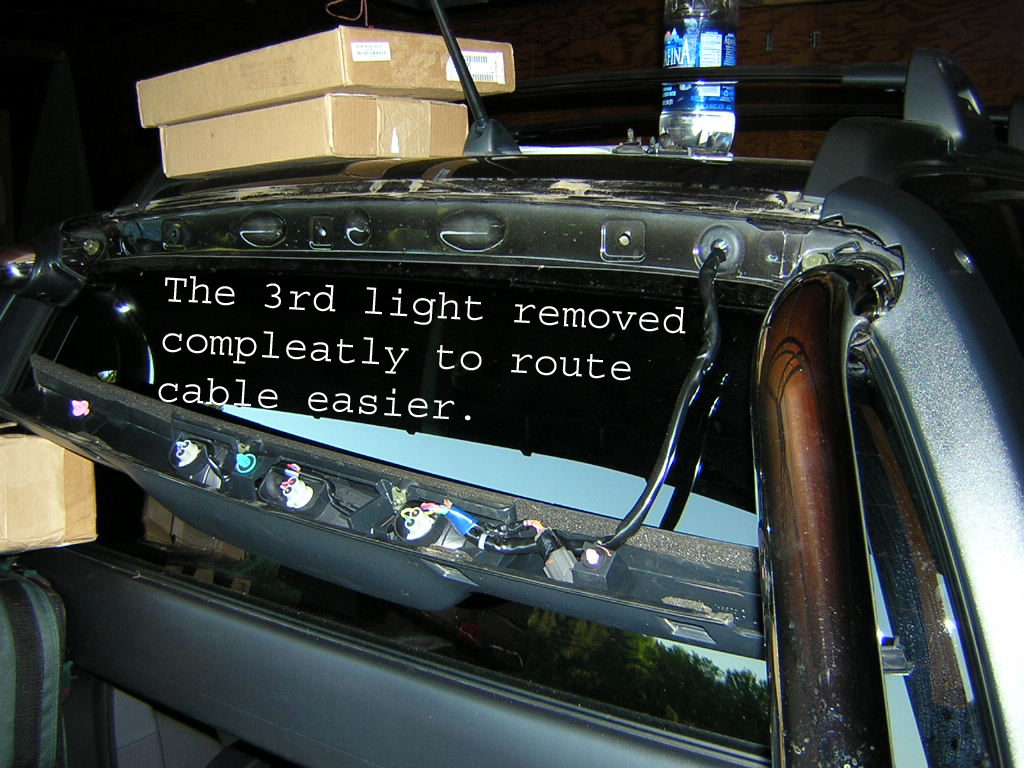

        Next I took off the 3rd light and everything around it:

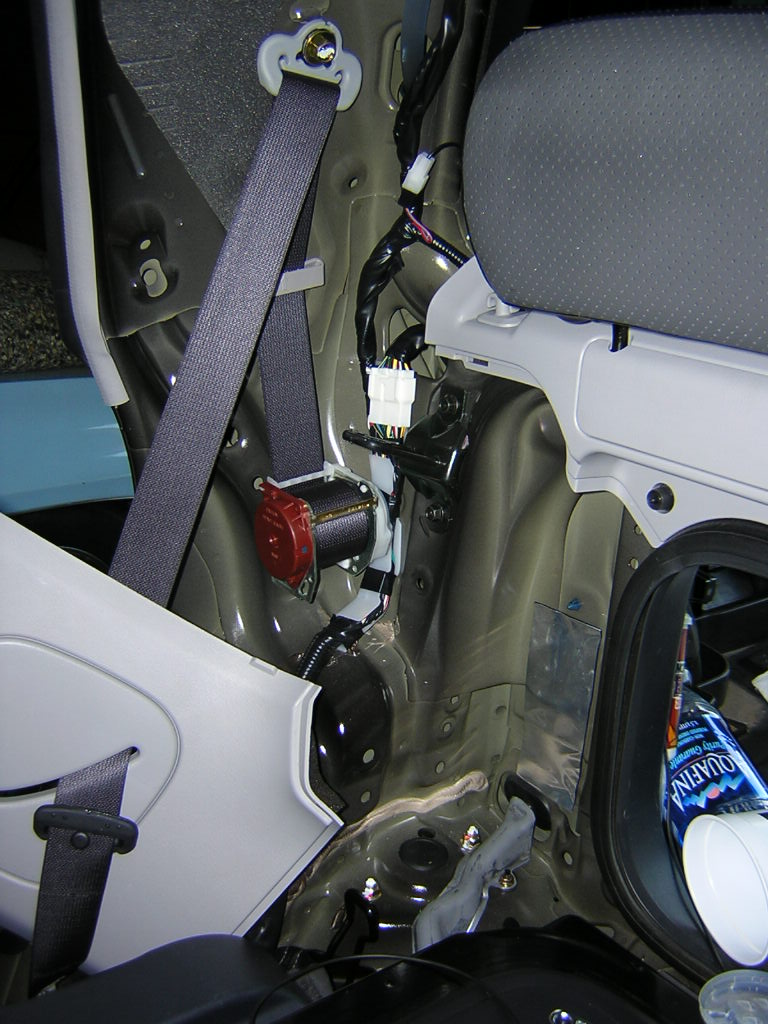

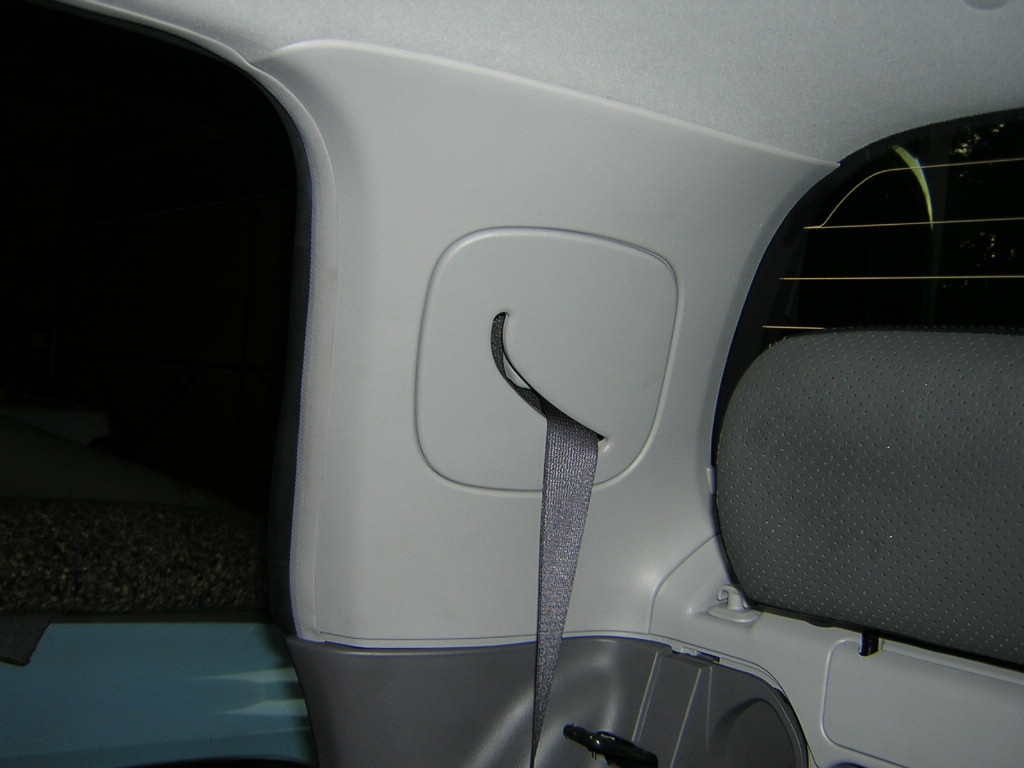

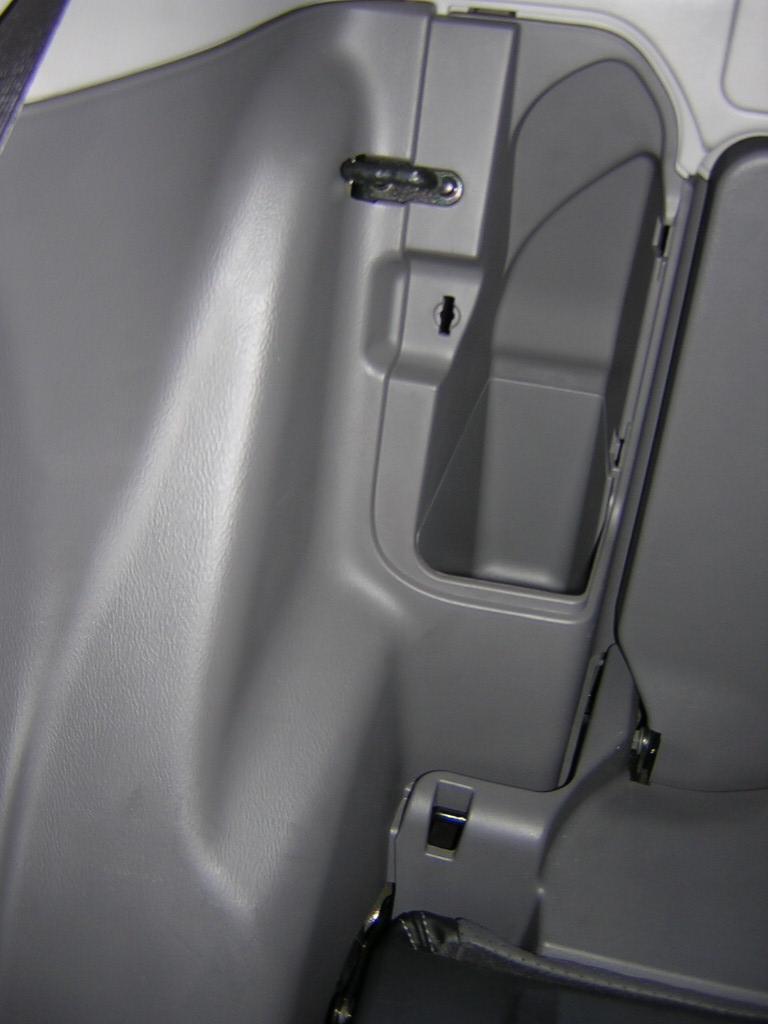

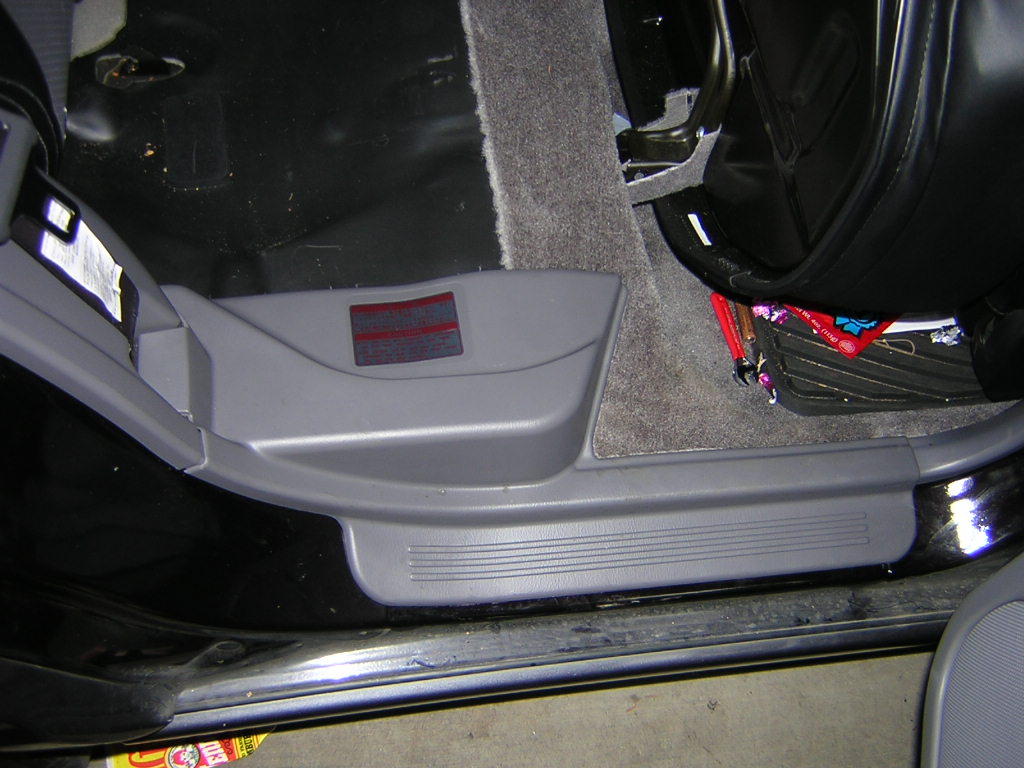

        Next I removed all the paneling in the cab:

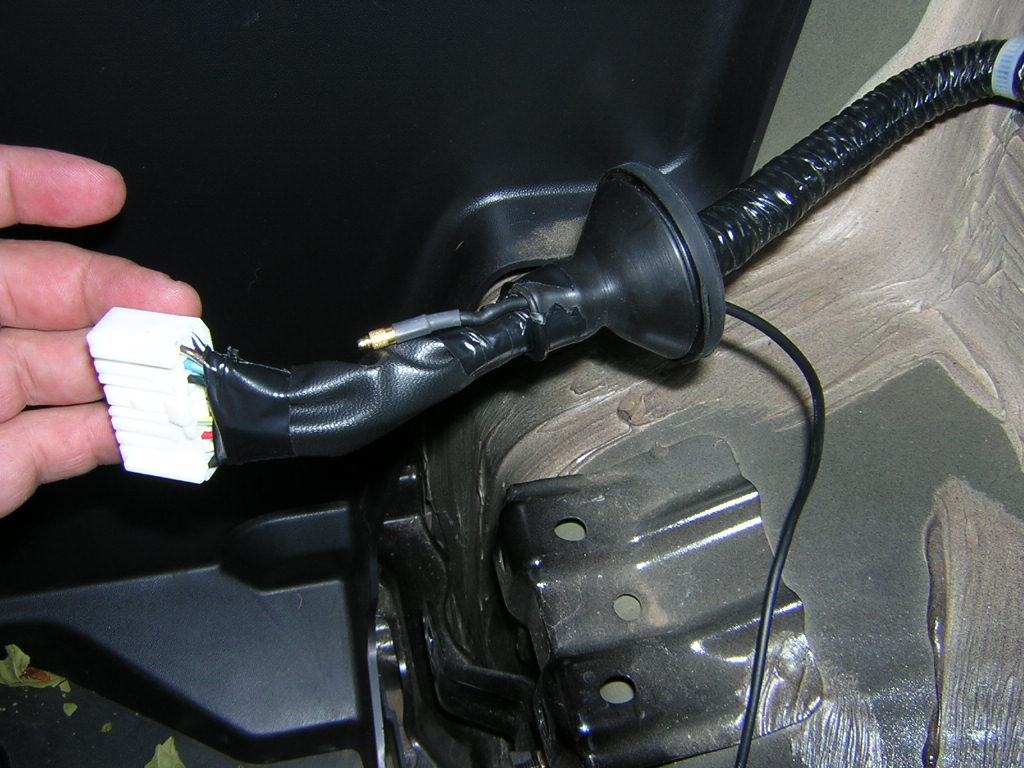

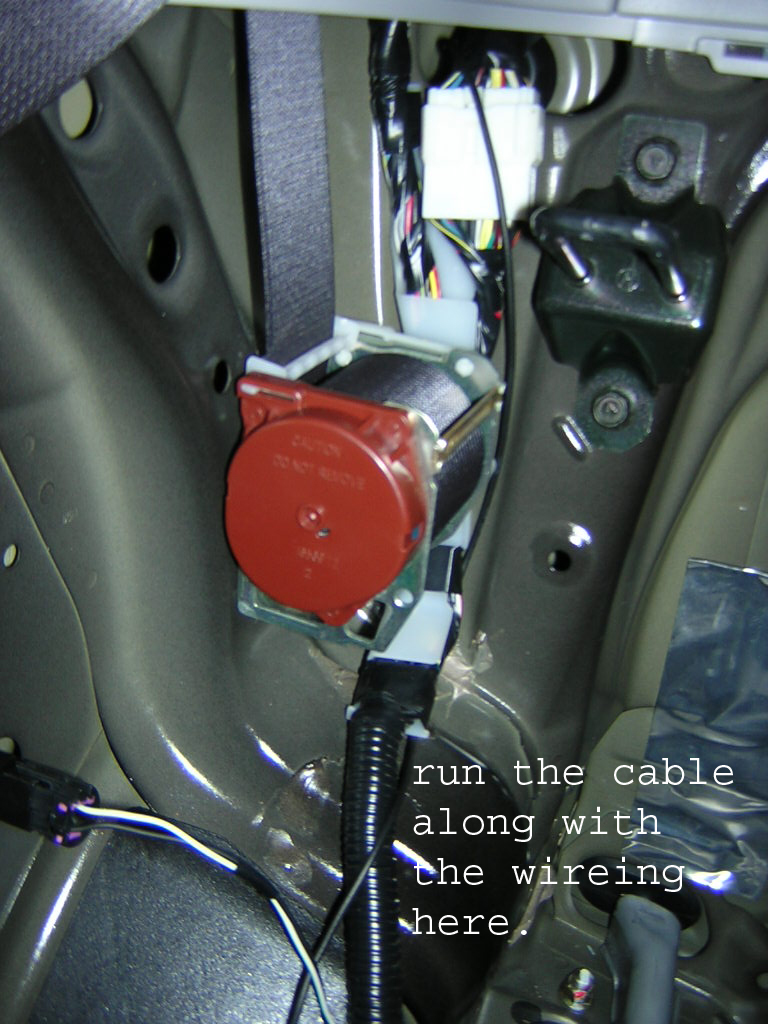

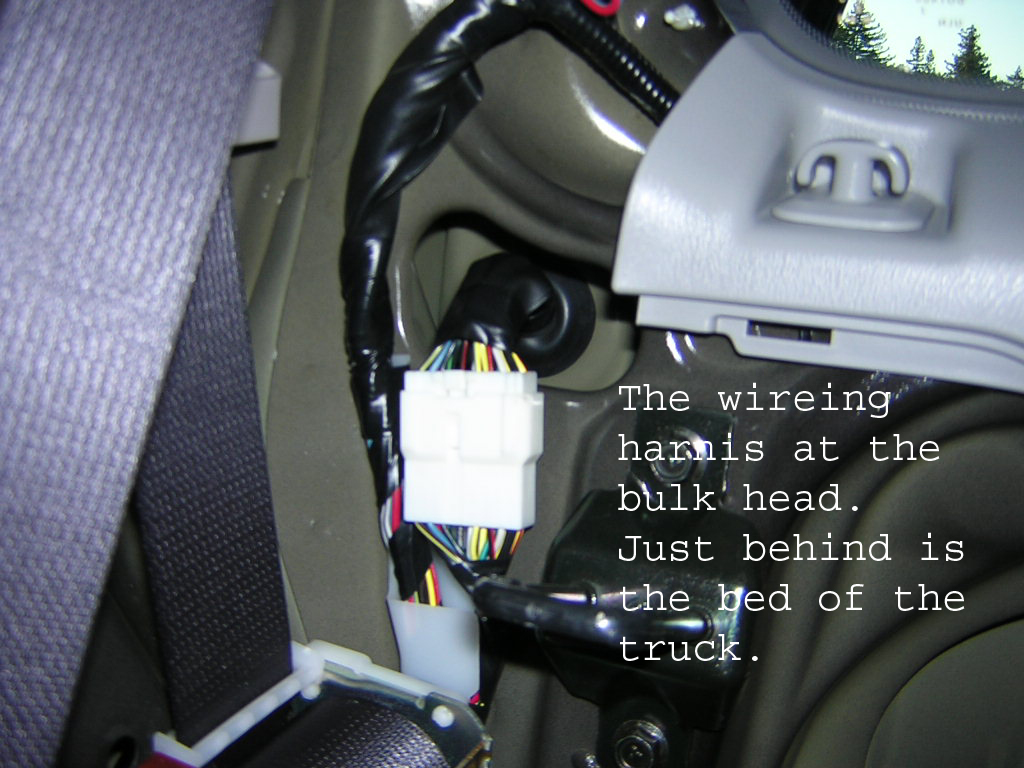

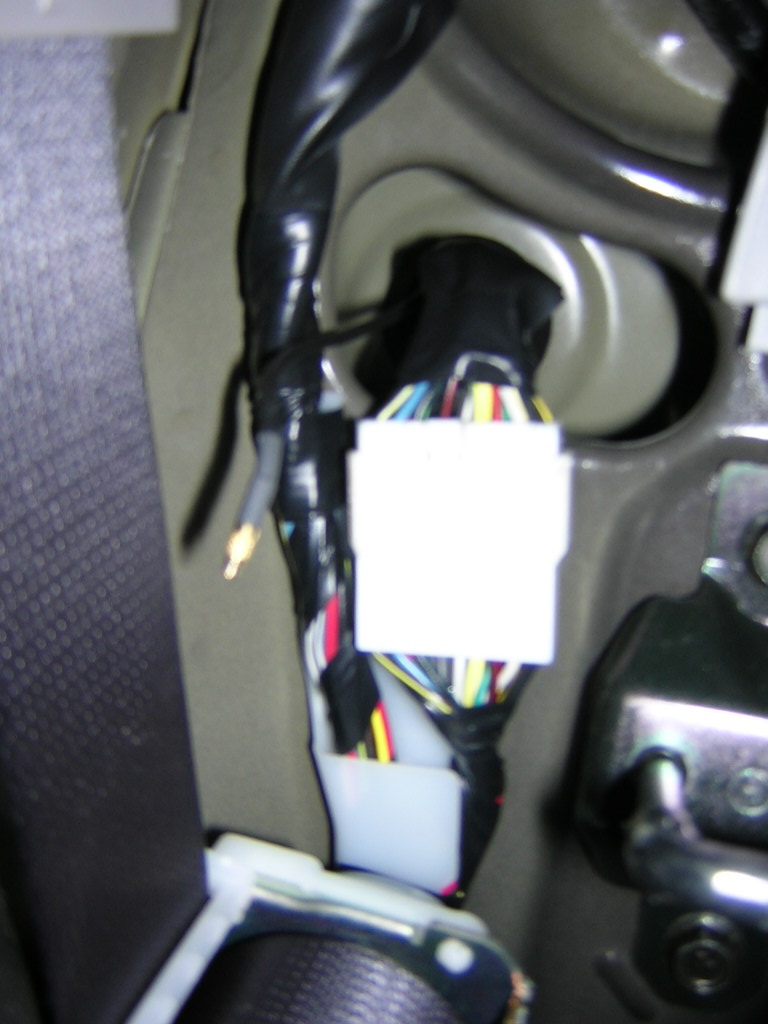

        I attached the antenna on the roof: and routed the cable through bulk head with cable for the tail lights and everything else:

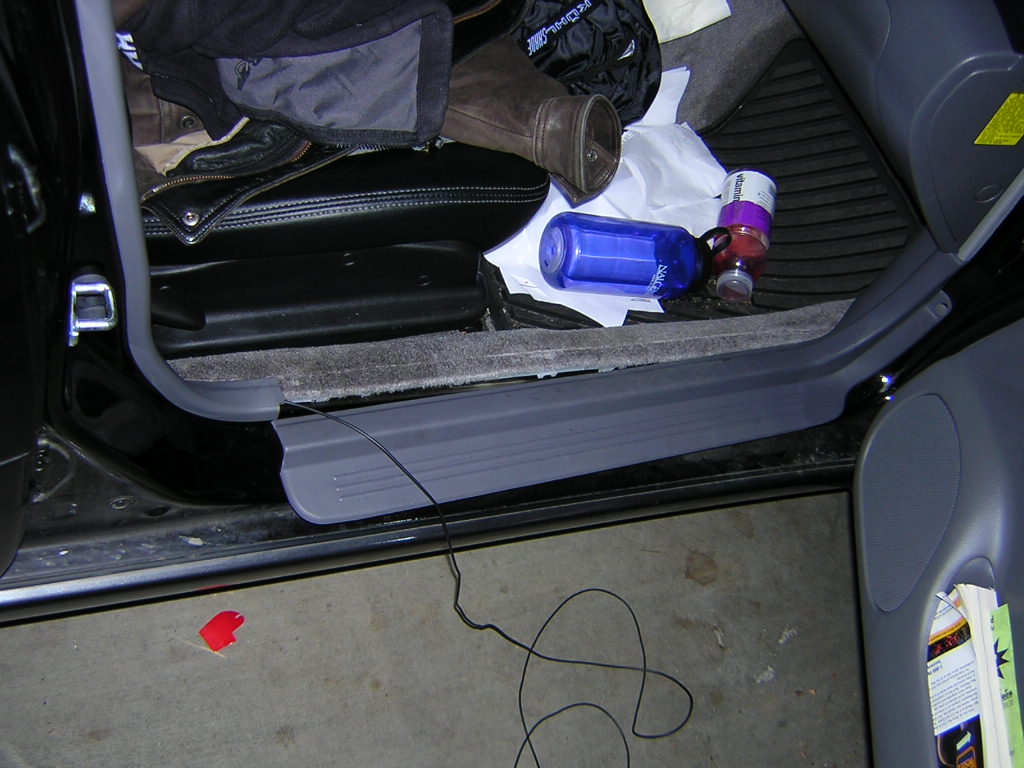

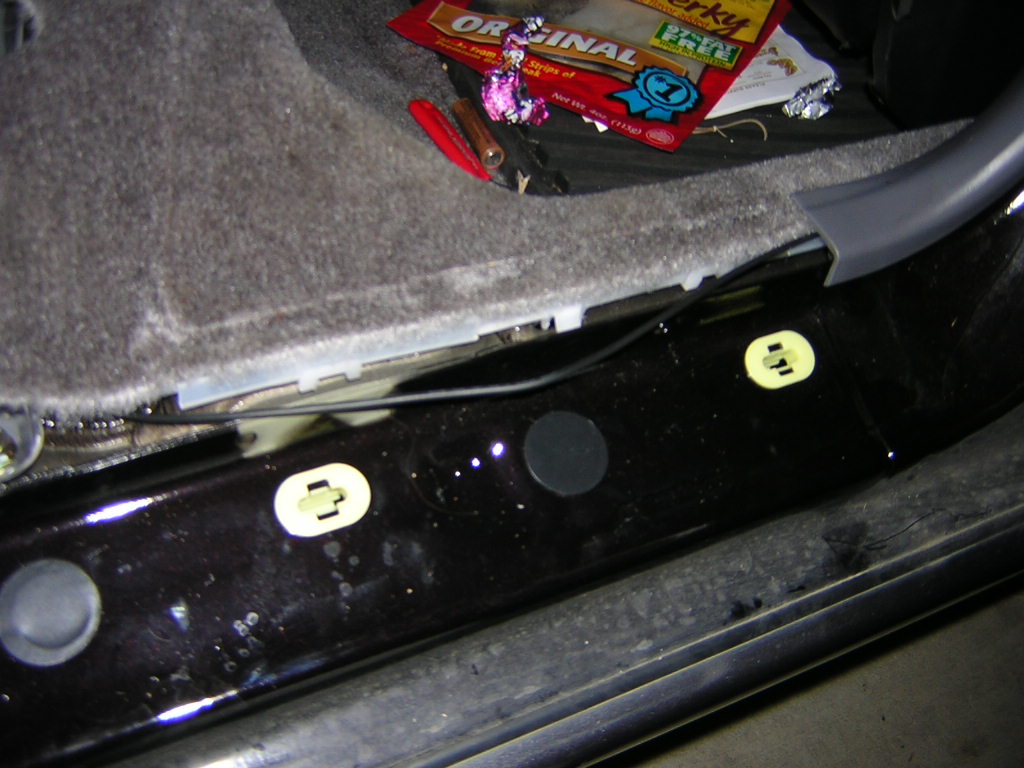

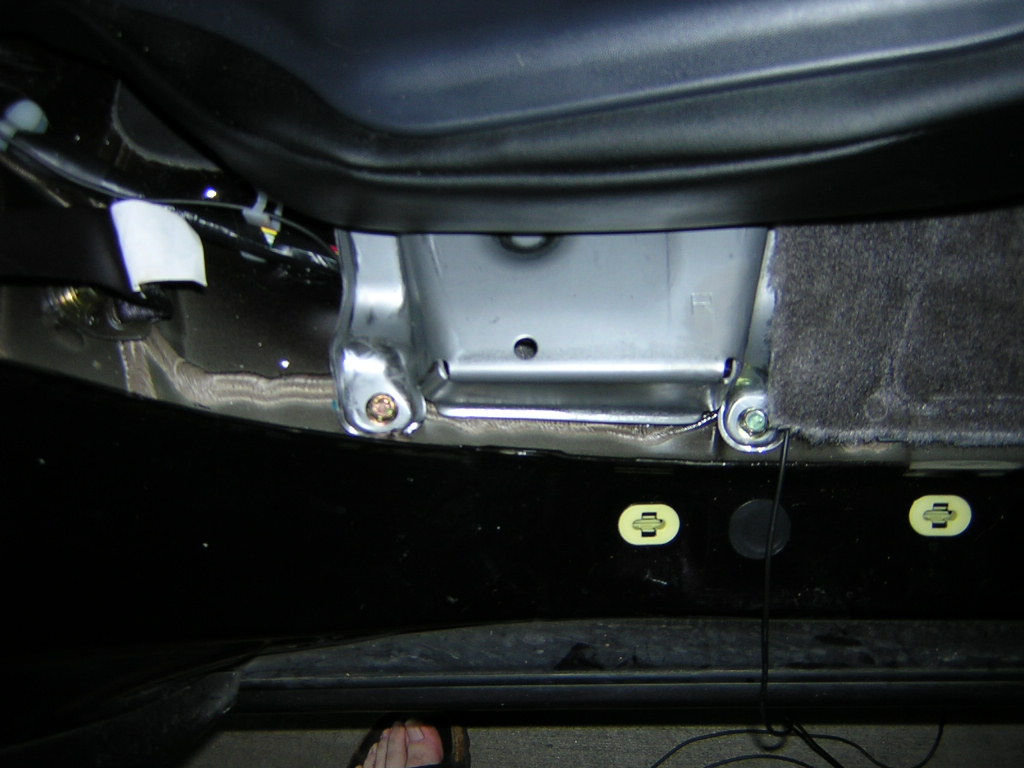

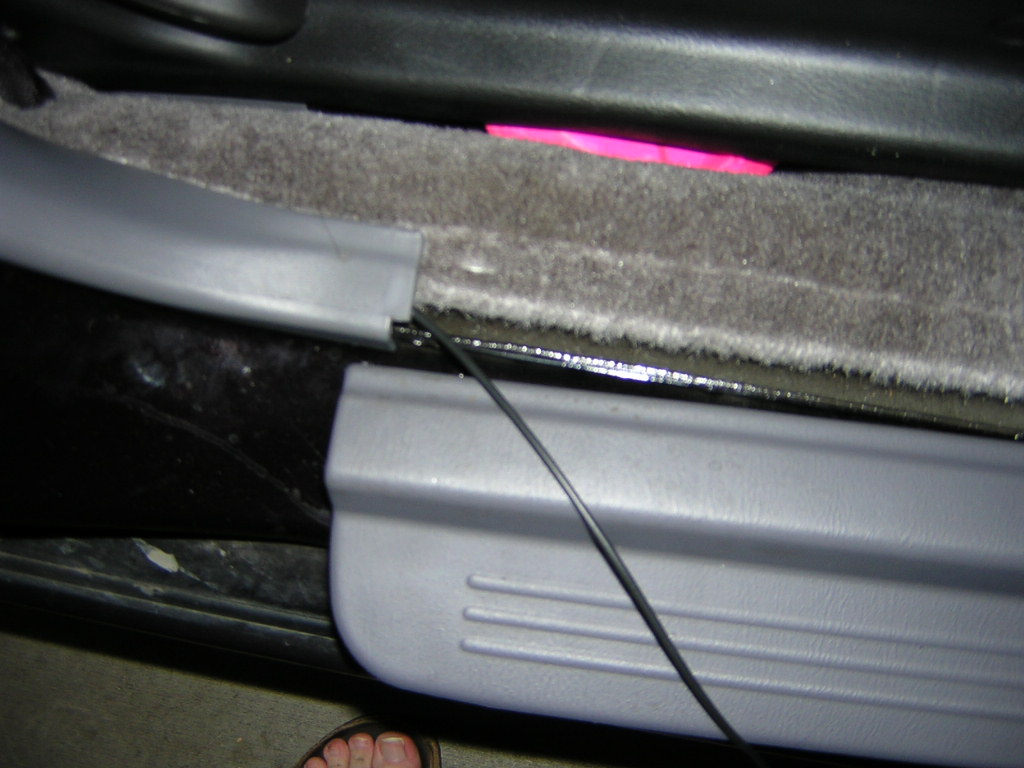

        Next I routed the cable down the floor under the paneling:

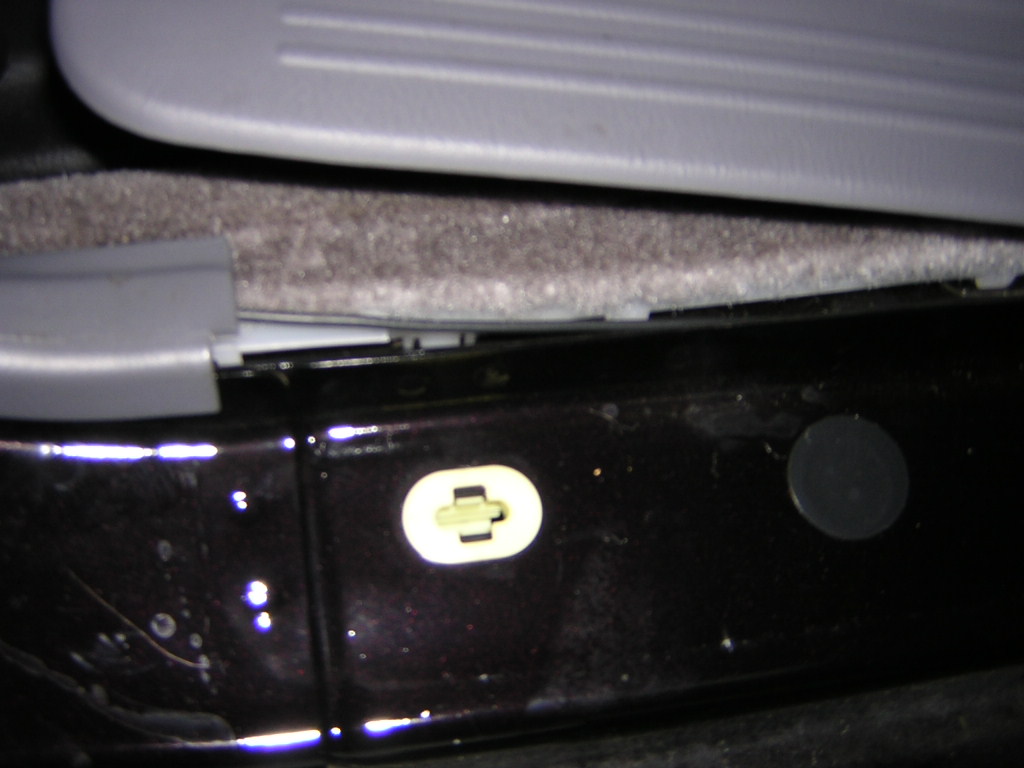

        Next I wedged the cable under the paneling for the mid section because I couldn't figure how to remove it.

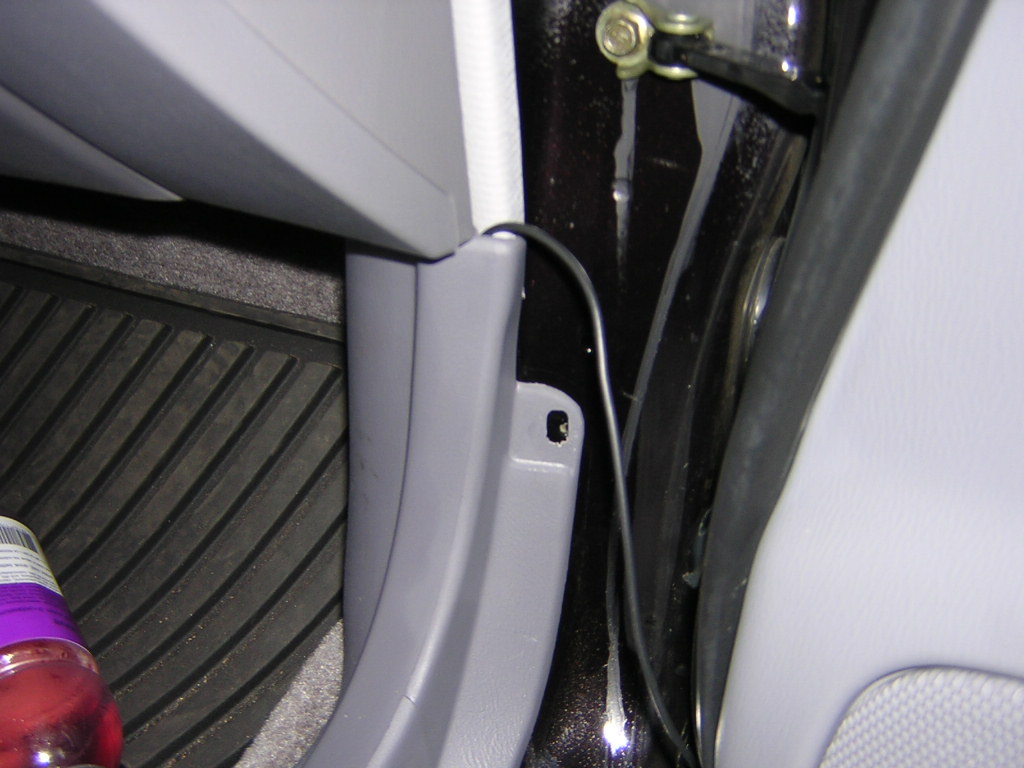

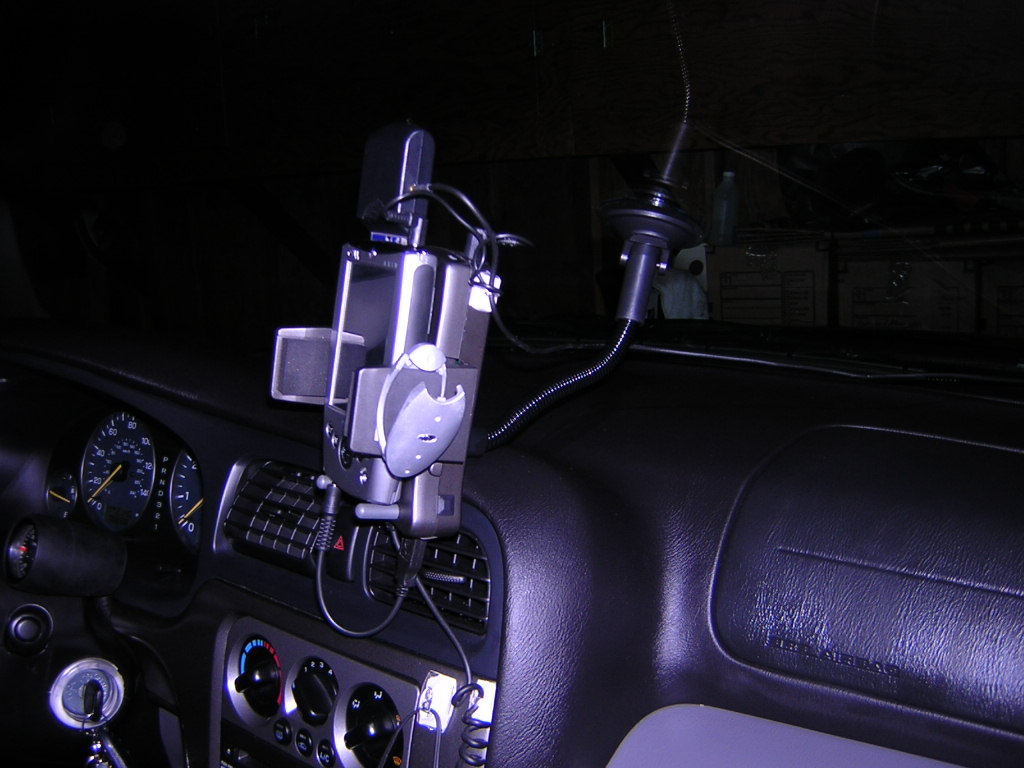

        Then I just routed it up along the dash to plug into my PDA GPS Navigation system

        Then I just made everything look good.  I can't even see any of the cable except on the dash where you seen in the picture.

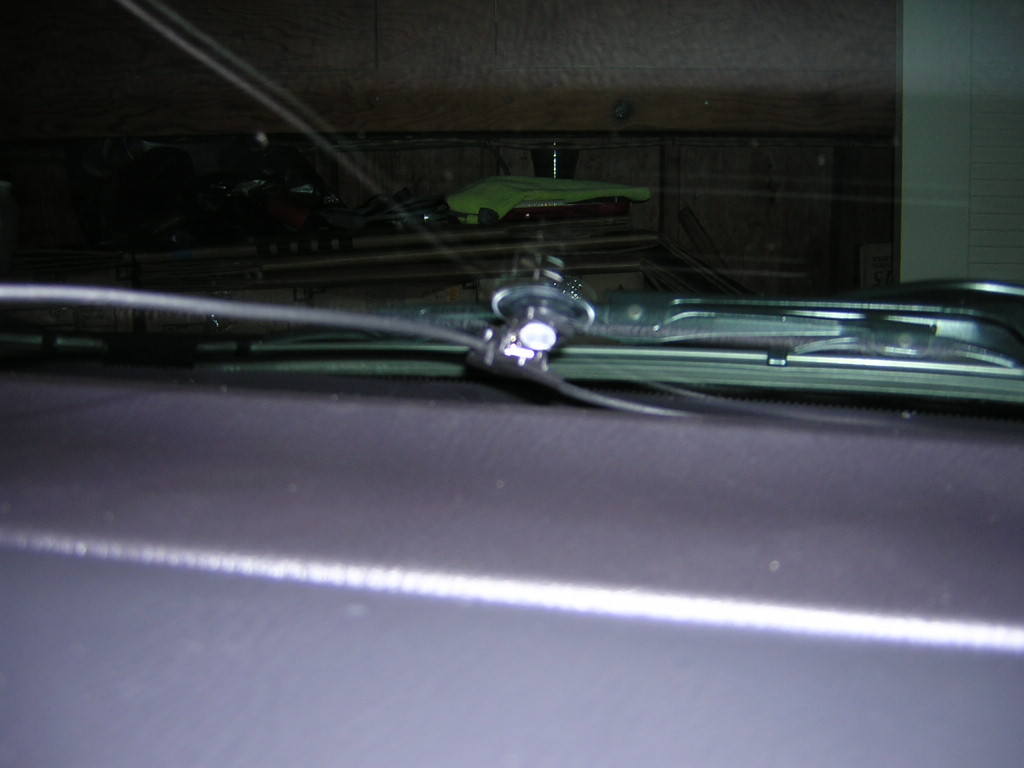

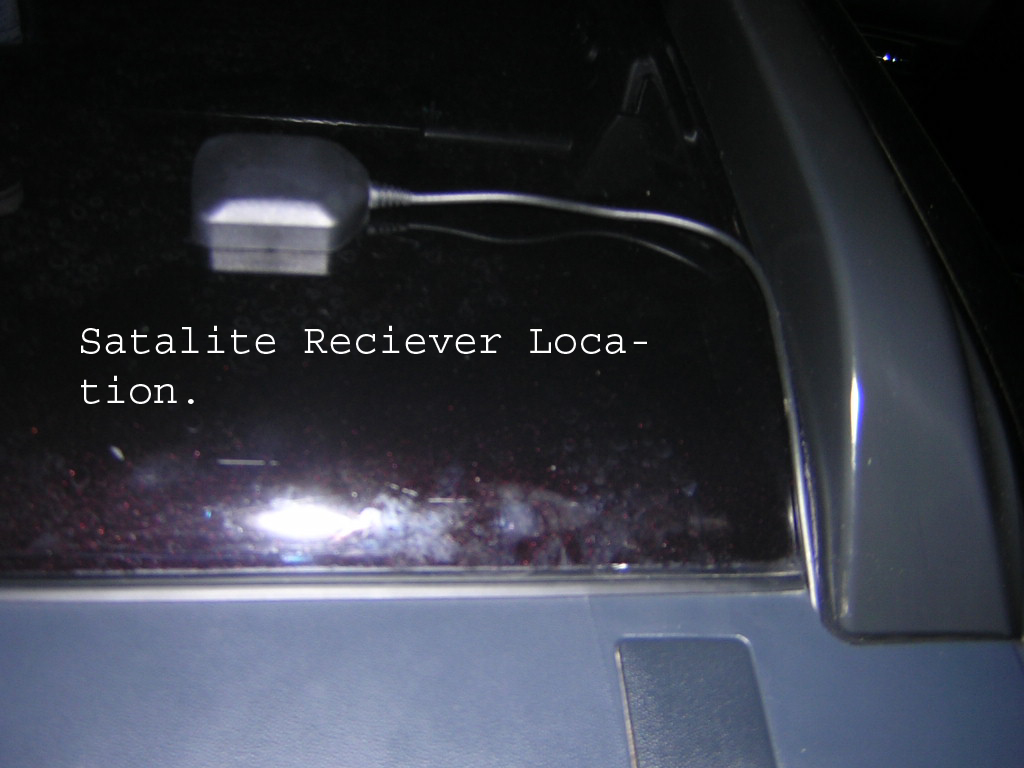

        Final view of the Antenna:

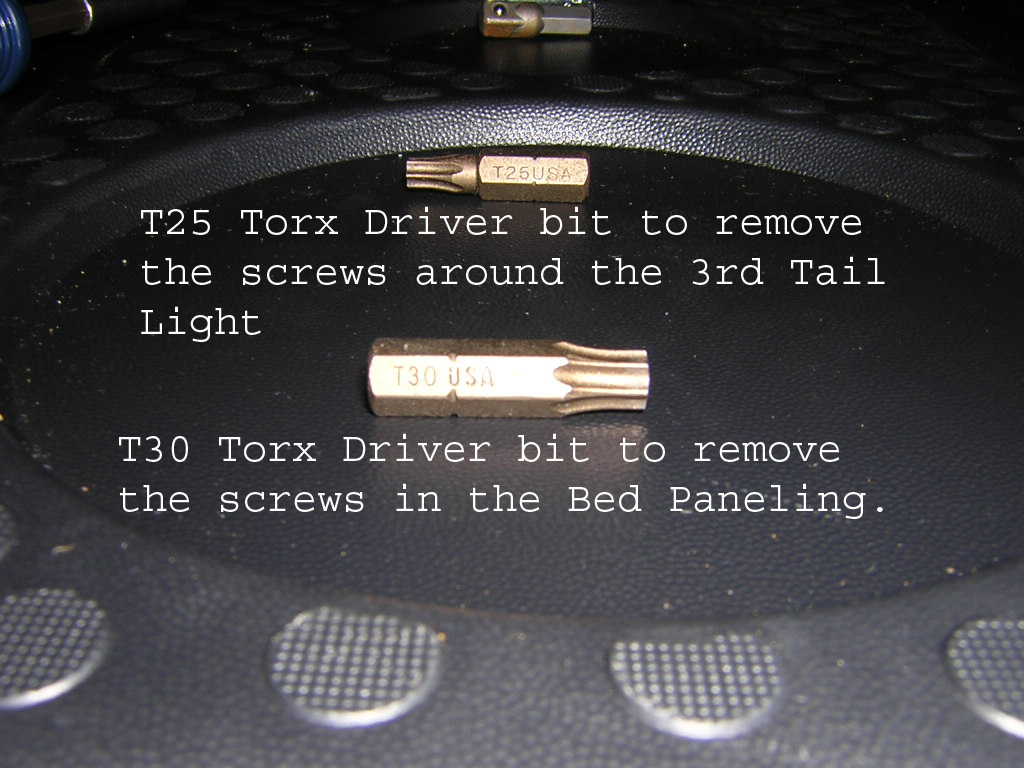

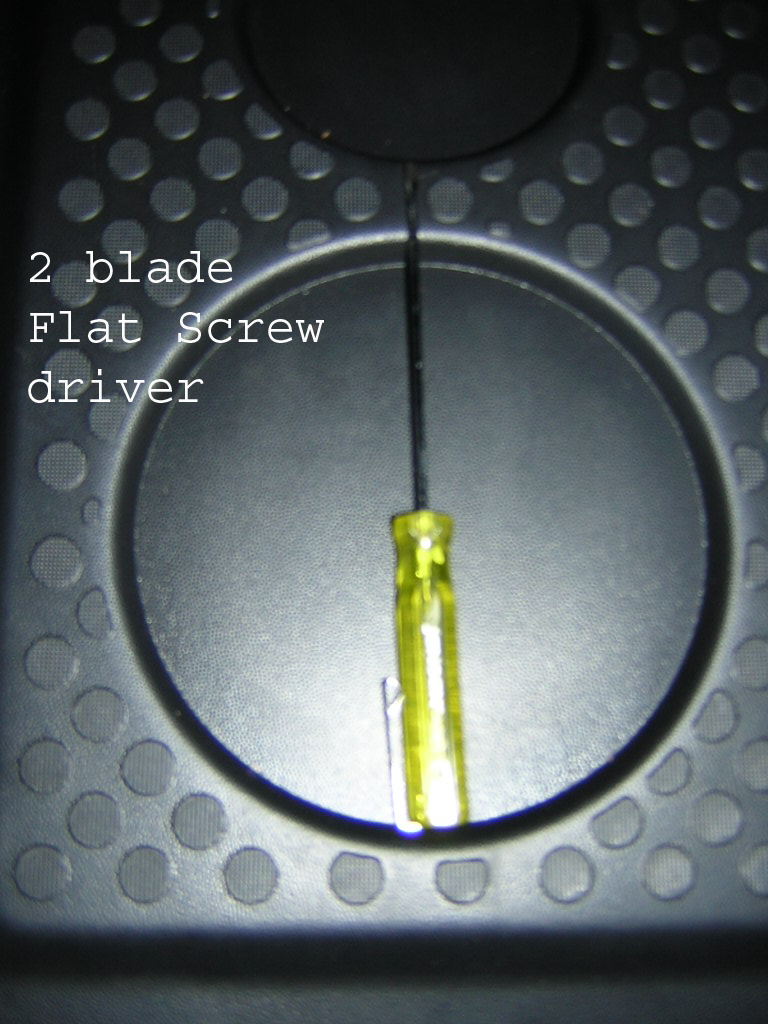

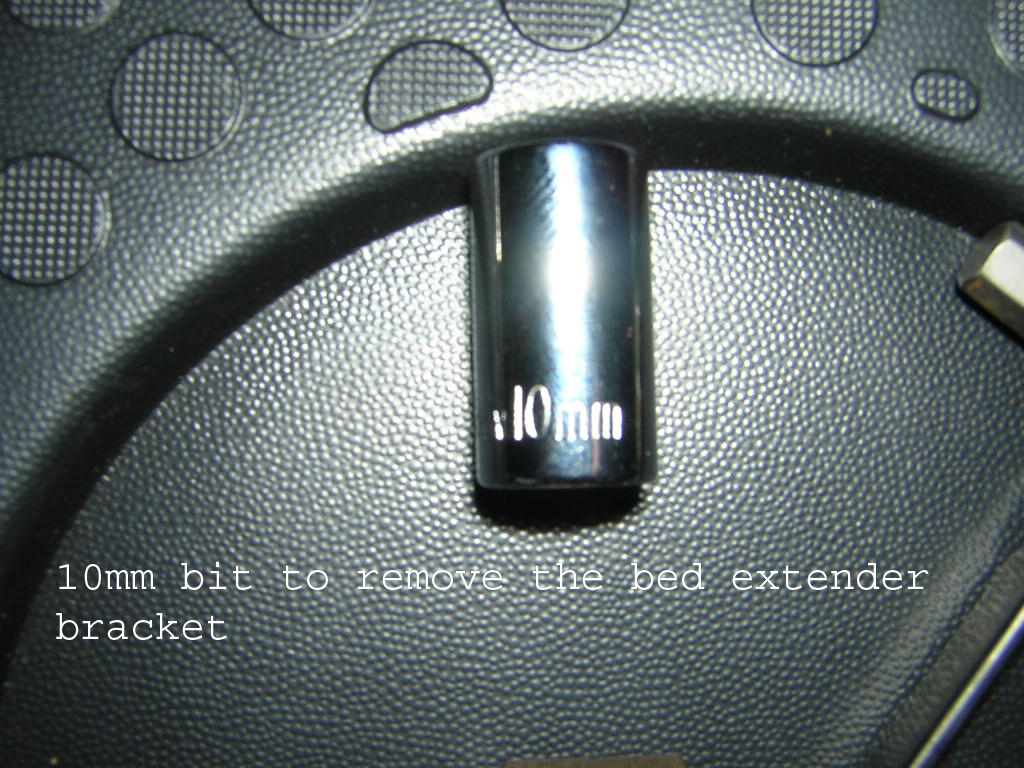

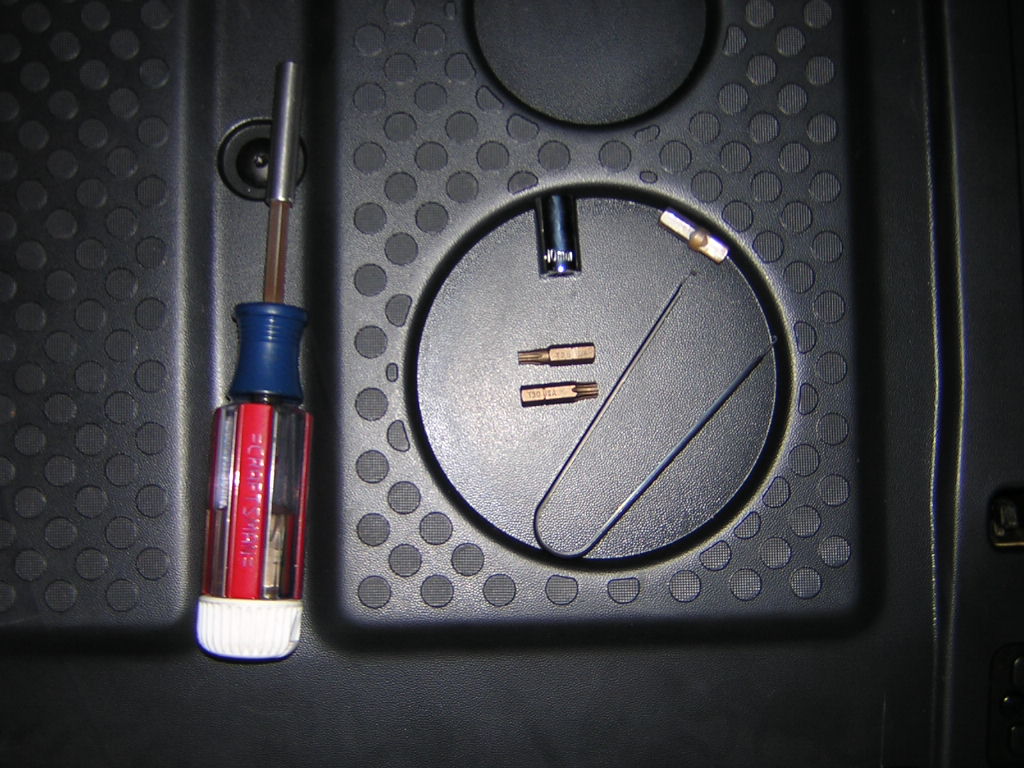

Tools Used:
